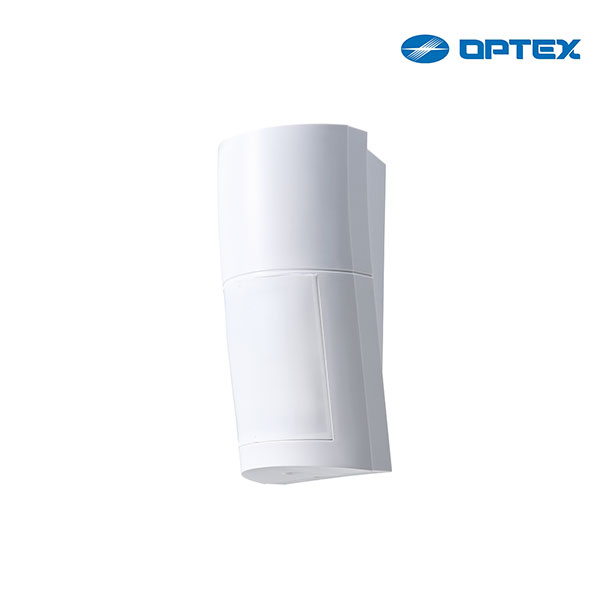

QXI-R Optex Wireless Wide Angle Outdoor PIR Detector

QXI-R Optex Wireless Wide Angle Outdoor PIR Detector

The QXI-R Optex Wireless Wide Angle Outdoor PIR Detector is a hard-wired outdoor PIR sensor providing 120° wide and 12m (40ft) detection area, which can be adjusted with the masking strips provided. Sleek and compact, the QXI-R sensors are small and well suited to any residential or commercial building as they provide reliable, animal tolerant intrusion and motion detection to trigger alarm panel of CCTV camera. The QXI-R is the wireless model . (The Wireless transmitter & Long life battery Not Included).

Features

• Series: QXI
• Detection method: Passive infrared
• Installation height: 2.2m. – 2.7m.
• 12m, 120 degree outdoor PIR
• Wireless transmitter (Not Included)
• Long life battery CR-123 (Not Included)
• QUAD pyro elements providing double layered detection and pet tolerance
• Sleek & Compact design
• Selectable Mounting Height & Pattern
• Easy Open and Close Front Cover
• Double Conductive Shielding
• SMDA (Super Multi Dimension Analysis) logic
• Operating Temperature: QXI-ST/R:-40 to +60°C (-40 to +140°F)
• UV Resistant ASA body
• Automatic Walk Test Mode
• Dimmensions: 144,5 x 78 x 83,5 mm.

Applications

• Approach
• House
• Garden
• Driveway

New and Original product with the quality of Optex.
